Custom 60-Min Fire-Rated Rock Wool Panel Paint Booth | CoatTech Intelligent Equipment

Adedi:	1
fiyat:	USD6000-USD12000/SET
Standart Paketleme:	Normal film ve karton ile
Teslim süresi:	Depozitodan 15 gün sonra
Ödeme yöntemi:	T/T
Tedarik Kapasitesi:	30 takım/ay

Detay Bilgisi

Ürün Açıklaması

Detay Bilgisi

Menşe yeri

Marka adı

CoatTech

Sertifika

Model numarası

Tamirhane Çözümü

Ana kapı::

Kat stili veya elektrikli haddeleme stili

Kaplama:

10-50um

Kullanım:

Otomotiv Boyama, Mobilya Boyama, Endüstriyel Boyama

Enerji Kullanma::

Dizel, gaz, buhar, elektrik veya diğer seçenek

Gürültü Seviyesi:

≤80dB

Güç kaynağı::

380V/50Hz/3ph veya başka bir seçenek

Malzeme:

Çelik

Enerji Kaynakları::

Su, elektrik, gaz

Başvuru::

Otobüs/kamyon veya diğer metalik ürünler

Isıtma sistemi:

Riello Marka Brülör

Ürün Açıklaması

Custom 60-Min Fire-Rated Rock Wool Panel System | CoatTech Intelligent Equipment

Engineered for space-constrained factories (5.60m & 6.20m width options). CoatTech provides CNAS-certified 60-minute fire-rated rock wool panel systems with 12–15 days of on-site installation and commissioning support.

come client also called it as custom industrial coating system, 60 minute fire rated panel, rock wool sandwich panel, compact spray booth layout, on-site commissioning service

Overview

When integrating new coating lines or partitioning industrial spray rooms, manufacturers often face two critical roadblocks:

narrow factory footprints and strict local fire safety regulations.

CoatTech's custom modular rock wool partition system is specifically engineered to solve both problems simultaneously. By combining millimeter-precise spatial layouts with certified 60-minute fire resistance, we ensure your equipment fits perfectly, passes local safety audits seamlessly, and operates reliably.

Key Highlights

1.60-Minute Fire Resistance Rating: Officially tested and certified under GB/T 9978 standards (CNAS / CMA / ILAC-MRA recognized).

2.Tailored Spatial Layouts: Pre-engineered options designed specifically for site widths capped at 5.60m (Option 1) or 6.20m (Option 2).

3.High-Density Insulation: Built with 50mm double-sided color steel panels filled with a 100 kg/m³ non-combustible rock wool core.

4.Turnkey On-Site Deployment: 1 experienced field engineer dispatched to your facility for 12–15 days of structural assembly, integration, and commissioning.

Dual Spatial Layout Options: Option 1 vs. Option 2

Custom 60-Min Fire-Rated Rock Wool Panel Paint Booth | CoatTech Intelligent Equipment

Standard equipment layouts often fail when space is strictly limited.

CoatTech provides two optimized structural configurations based on your exact plant boundary constraints:

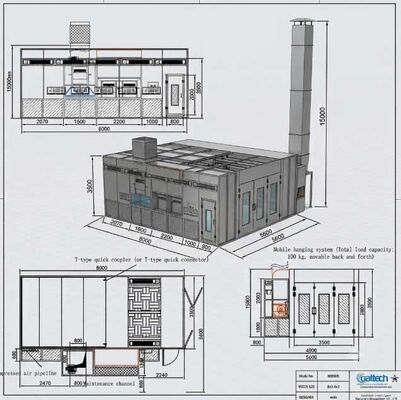

Option 1: Recommended for Site Widths Capped at 5.60 m

1.Focus: Maximum space efficiency in tight operational corridors.

2.Design: Ultra-compact footprint that integrates panel walls and ductwork without compromising internal working space or safety clearance.

Item / System Parameter	Detailed Technical Specifications & Configuration Requirements	Remarks / Compliance
1.0 MAIN DIMENSIONS & SITE ADAPTATION
Inside Working Size	8000 × 3400 × 3000 mm (L × W × H)	Workpiece chamber
Outside Overall Size	8110 × 5600 × 3500 mm (L × W × H) (Includes 800mm maintenance aisle)	Fits 5.6m site boundary
Foundation & Floor	Completely flush with existing hangar floor. Strictly NO pits, NO ramps required.	100% Flush Floor
Maintenance Passageway	Includes 800mm dedicated maintenance aisle for fan & duct servicing.	Integrated layout
2.0 CABIN STRUCTURE & FIRE-RATED PANELS
Wall Panels	50mm high-strength rockwool sandwich panels; Effective width 1150mm; Double-sided 0.6mm white color steel plates; Core density: 120 kg/m³; Fire Rating: Class A1.	Class A1 Fire-Rated
Roof Panels	50mm high-strength rockwool sandwich panels; Effective width 1150mm; Double-sided 0.6mm white color steel plates; Core density: 120 kg/m³; Fire Rating: Class A1.	Class A1 Fire-Rated
Main Access Door	3000 × 2800 mm (W × H); Quad-fold sheet metal bended door with square tube frame, PU insulation core, tempered glass observation windows, heavy-duty hinges.	Easy smooth operation
Personnel Door	1 unit located at left-front side, Size: 800 × 2000 mm (W × H); Equipped with automatic pressure-relief safety lock and tempered glass window.	Emergency Exit
3.0 VENTILATION & AIRFLOW SYSTEM
Airflow Capacity	30,000 m³/h total airflow (Supply & Exhaust balanced).	High capacity
Side Exhaust Plenums	Side-wall mounted exhaust plenums (Height: 1000mm), constructed with 50x50mm square tubes, clad with rockwool panels and internal fiberglass filter.	Side-Downdraft design
Intake Fan Cabinet	2 units YDW-5.0A external rotor double-inlet centrifugal fans; Motor power: 5.5 kW per unit (Total 11 kW); Equipped with Belimo electric modulating air damper.	30,000 m³/h capacity
Air Velocity Calculation	Air Velocity = Total Airflow / 3600 / Cross-sectional Area = 30000 / 3600 / (8.0 × 3.4) = 0.306 m/s (No-load air velocity: 0.35 m/s).	Compliant airflow speed
Exhaust Fan Cabinet	1 unit TAE-560H double-inlet centrifugal fan (belt driven); Motor power: 11 kW; Total airflow: 30,000 m³/h; Static pressure ≥ 700 Pa; Manual/electric damper.	High static pressure
4.0 FILTRATION & ENVIRONMENTAL PROTECTION
1st Stage Pre-filter	Intake pre-filter cotton, EN 779 Class G3 rating.	Dust pre-filtration
2nd Stage Ceiling Filter	Full-depth 3D sticky sub-high efficiency filter, EN 779 Class F5 rating.	Fine particle capture
3rd Stage Paint Arrestor	Fiberglass paint arrestor mats: 1st layer on side exhaust plenums, 2nd layer at exhaust cabinet bottom (Green inlet, white outlet, EN 779 Class G3).	Overspray filtration
4th Stage VOC Adsorption	Granular activated carbon filter system for adsorption of organic solvents (benzene, xylene, VOCs).	Environmental compliance
5.0 LIGHTING & ELECTRICAL CONTROL
Ceiling Lighting	2 rows: 10 groups × 4 tubes = 40 pcs 22W T8 LED tubes.	IP65 Explosion-Proof
Side Lighting	2 rows: 10 groups × 2 tubes = 20 pcs 8W T8 LED tubes.	IP65 Explosion-Proof
Illuminance Level	Illuminance ≥ 1000 LUX with dedicated explosion-proof light boxes.	High visibility
Control Cabinet	Standard relay and push-button control cabinet; Functions: Spraying control, lighting, fault alarm, main power, emergency stop, differential pressure gauge.	Explosion-proof wiring
6.0 DUCTING, COMPRESSED AIR & AUXILIARIES
Exhaust Ducting	12 sections of 800 × 800 × 1000 mm exhaust ducts, 1 × 90° elbow, 1 × 45° elbow.	Includes 15m chimney spec
Compressed Air Line	DN15 stainless steel compressed air pipeline; T-type quick couplers on both left and right sides; Front-end equipped with AIRTAC FRL 3-unit set (Oil-water separator + regulator).	AIRTAC FRL Included
Total Power	24 kW (Fans 22 kW + Lighting ~2 kW).	380V/50Hz/3Phase
Documentation & Service	Includes Operation Manual, Wiring Diagram, Certificate of Conformity, Packing List	Full support package

Option 2: Recommended for Site Widths Capped at 6.20 m

1.Focus: Enhanced operator ergonomics and maintenance access.

2.Design: Utilizes additional lateral clearance to provide wider walk-through corridors, simplifying routine maintenance, filter replacement, and material handling.

Item / System Parameter	Detailed Technical Specifications & Configuration Requirements	Remarks / Compliance
1.0 MAIN DIMENSIONS & SITE ADAPTATION
Inside Working Size	8000 × 4000 × 3000 mm (L × W × H)	Maximized inside width
Outside Overall Size	8110 × 6200 × 3500 mm (L × W × H) (Includes 800mm maintenance aisle)	Exceeds 5.6m site width
Foundation & Floor	Completely flush with existing hangar floor. Strictly NO pits, NO ramps required.	100% Flush Floor
Maintenance Passageway	Includes 800mm dedicated maintenance aisle for fan & duct servicing.	External layout
2.0 CABIN STRUCTURE & FIRE-RATED PANELS
Wall Panels	50mm high-strength rockwool sandwich panels; Effective width 1150mm; Double-sided 0.6mm white color steel plates; Core density: 120 kg/m³; Fire Rating: Class A1.	Class A1 Fire-Rated
Roof Panels	50mm high-strength rockwool sandwich panels; Effective width 1150mm; Double-sided 0.6mm white color steel plates; Core density: 120 kg/m³; Fire Rating: Class A1.	Class A1 Fire-Rated
Main Access Door	3000 × 2900 mm (W × H); Quad-fold sheet metal bended door with square tube frame, PU insulation core, tempered glass observation windows, heavy-duty hinges.	Higher clearance door
Personnel Door	1 unit located at left-front side, Size: 800 × 2000 mm (W × H); Equipped with automatic pressure-relief safety lock and tempered glass window.	Emergency Exit
3.0 VENTILATION & AIRFLOW SYSTEM
Airflow Capacity	30,000 m³/h total airflow (Supply & Exhaust balanced).	High capacity
Side Exhaust Plenums	Side-wall mounted exhaust plenums (Height: 1000mm), constructed with 50x50mm square tubes, clad with rockwool panels and internal fiberglass filter.	Side-Downdraft design
Intake Fan Cabinet	2 units YDW-5.0A external rotor double-inlet centrifugal fans; Motor power: 5.5 kW per unit (Total 11 kW); Equipped with Belimo electric modulating air damper.	30,000 m³/h capacity
Air Velocity Calculation	Air Velocity = Total Airflow / 3600 / Cross-sectional Area = 30000 / 3600 / (8.0 × 4.0) = 0.260 m/s (Nominal velocity calculation: 0.347 m/s).	Compliant airflow speed
Exhaust Fan Cabinet	1 unit TAE-560H double-inlet centrifugal fan (belt driven); Motor power: 11 kW; Total airflow: 30,000 m³/h; Static pressure ≥ 700 Pa; Manual/electric damper.	High static pressure
4.0 FILTRATION & ENVIRONMENTAL PROTECTION
1st Stage Pre-filter	Intake pre-filter cotton, EN 779 Class G3 rating.	Dust pre-filtration
2nd Stage Ceiling Filter	Full-depth 3D sticky sub-high efficiency filter, EN 779 Class F5 rating.	Fine particle capture
3rd Stage Paint Arrestor	Fiberglass paint arrestor mats: 1st layer on side exhaust plenums, 2nd layer at exhaust cabinet bottom (Green inlet, white outlet, EN 779 Class G3).	Overspray filtration
4th Stage VOC Adsorption	Granular activated carbon filter system for adsorption of organic solvents (benzene, xylene, VOCs).	Environmental compliance
5.0 LIGHTING & ELECTRICAL CONTROL
Ceiling Lighting	2 rows: 10 groups × 4 tubes = 40 pcs 22W T8 LED tubes.	IP65 Explosion-Proof
Side Lighting	2 rows: 10 groups × 4 tubes = 40 pcs 8W T8 LED tubes.	IP65 Explosion-Proof (Increased)
Illuminance Level	Illuminance ≥ 1000 LUX with dedicated explosion-proof light boxes.	High visibility
Control Cabinet	Standard relay and push-button control cabinet; Functions: Spraying control, lighting, fault alarm, main power, emergency stop, differential pressure gauge.	Explosion-proof wiring
6.0 DUCTING, COMPRESSED AIR & AUXILIARIES
Exhaust Ducting	12 sections of 800 × 800 × 1000 mm exhaust ducts, 1 × 90° elbow, 1 × 45° elbow.	Includes 15m chimney spec
Compressed Air Line	DN15 stainless steel compressed air pipeline; T-type quick couplers on both left and right sides; Front-end equipped with AIRTAC FRL 3-unit set (Oil-water separator + regulator).	AIRTAC FRL Included
Total Power	24 kW (Fans 22 kW + Lighting ~2 kW).	380V/50Hz/3Phase
Documentation & Service	Includes Operation Manual, Wiring Diagram, Certificate of Conformity, Packing List	Full support package

Custom 60-Min Fire-Rated Rock Wool Panel Paint Booth | CoatTech Intelligent Equipment

Certified Fire Safety & Quality Assurance

Safety and regulatory compliance are non-negotiable. CoatTech panel systems undergo rigorous furnace testing by accredited national testing centers (SCFRI / NFTC).

1.Tested Integrity & Insulation: Maintained structural stability and thermal containment for over 60 minutes under intense fire exposure.

2.International Recognition: Our English inspection reports bear CNAS, CMA, and ILAC-MRA accreditation marks, making them directly acceptable for local fire department clearances across Europe, the Middle East, the Americas, and Asia-Pacific.

Turnkey Field Services: From Factory Floor to Full Operation

We don't just ship hardware—we guarantee operational readiness. Every system package includes comprehensive technical files and dedicated on-site assistance:

1.Complete Engineering Dossier: Immediate access to detailed 3D drawings, electrical schematics, itemized price breakdowns, and official inspection reports.

2.On-Site Installation Support: We dispatch 1 senior field engineer to your site for 12–15 days.

3.System Commissioning & Training: Our technician conducts complete alignment checks, airflow/heating tests, safety verifications, and hands-on training for your local operational team.

Frequently Asked Questions (FAQ)

Q: Is a 50mm rock wool sandwich panel sufficient for 1-hour fire resistance?
A: Yes. CoatTech’s 50mm wall panel utilizes high-density (100 kg/m³) rock wool bound with high-temperature adhesive and silicate fiber seam sealing. It has been officially certified under GB/T 9978 standards to maintain structural integrity and thermal insulation for a full 60 minutes.

Q: How do I choose between Option 1 (5.60m) and Option 2 (6.20m)?

A: If your available clear site width is strictly limited to 5.60 meters or less, select Option 1. If your facility allows up to 6.20 meters of width, select Option 2 to take advantage of wider maintenance and operator access lanes.

Q: What is included in the 12–15 day on-site installation service?

A: CoatTech provides 1 dedicated technician on-site to guide structural panel assembly, seal verification, duct/component alignment, initial system power-up, operational testing, and safety training for your maintenance personnel.

Ready to Optimize Your Facility?

Get the exact specifications, 3D drawings, and certified test reports for your engineering review.

Expert Engineering | Tailored Industrial Coating & Spray Booth
